Release: CX-Titan (Preview)

CX-0135 Business Partner Company Certificate Management v2.4.0

ABSTRACT

In the world of business, company certificates are often mandatory for conducting transactions between two companies. However, the process of provisioning, maintaining, and validating these certificates can be a major challenge. For example, if a company has 100 customers, they may need to provide their company certificates in 100 different ways and maintain them at 100 different points.

To address this issue, a use case has been developed that provides a standardized but generic data model for company certificates. This standard allows Catena-X participants to provide, request, accept or reject company certificates using the Eclipse Data Space Connector (EDC).

FOR WHOM IS THE STANDARD DESIGNED

This standard is relevant to the following parties:

Data Provider and Consumer
Business Application Provider

Context regarding the naming of involved parties: The Catena-X operating model, as well as the EDC, uses the roles Data Consumer and Data Provider. The EDC uses these roles in regard to the parties that offer and consume EDC assets, while the operating model uses them in the context of information flow. In some cases, these understandings align, but, for example, in the case of APIs (especially the certificate push mechanism), a mismatch can occur between the two. To ensure clarity and avoid potential confusion, this standard employs the terms Certificate Consumer and Certificate Provider to designate entities and explicitly eliminate this ambiguity. A detailed explanation of these terms is available in 3.2.11 CERTIFICATE PROVIDER AND CERTIFICATE CONSUMER.

1 INTRODUCTION

This standard is crucial for data providers and consumers who want to exchange company certificates through the Catena-X data space. By complying with this standard, companies can ensure seamless certificate management, thereby streamlining their overall operations.

The following company certificate use cases are supported in this release:

Certificate Provider wants to publish a certificate / Certificate Consumer wants to discover a published certificate.
Certificate Consumer wants to request a certificate from a specific Certificate Provider
Certificate Consumer wants to notify a Certificate Provider of acceptance or rejection of a consumed certificate via a feedback message
Certificate Provider wants to notify a Certificate Consumer of the availability of a new certificate asset

For avoidance of the doubt, we are not replacing the existing publication semantic model.

1.1 AUDIENCE & SCOPE

This section is non-normative

List for which roles the standard is relevant:

Data Provider and Consumer
Business Application Provider
Enablement Service Provider

This standard applies to business application providers and enablement service providers who aim to offer a solution for managing and exchanging company certificates, and returning them to customers. It is also important for Data Providers and Consumers who need to manage and exchange certificates through a business application providers.

1.2 CONTEXT AND ARCHITECTURE FIT

This section is non-normative

The establishment of various industry networks, such as Catena-X, has significantly increased the need for data standards across the entire automotive value chain. To promote industry-wide, international data exchange and facilitate networking between OEMs, suppliers, customers, and industrial partners, it is essential to define and introduce a cross-industry standard for the provisioning, exchanging and maintenance, of company certificates. This standard ensures interoperability and data sovereignty, while also increasing trust in certificates.

By implementing this standard, companies can streamline the process of managing and exchanging certificates, reducing the burden of maintaining multiple certificates for different customers. Additionally, the standard ensures that certificates are exchanged in a secure and reliable manner, enhancing trust and confidence in the data exchange process. Overall, the introduction of a cross-industry standard for company certificates is a crucial step towards achieving seamless and secure data exchange across the automotive industry.

This aspect model is written in SAMM 2.1.0 as a modeling language conformant to CX-0003:1.1 SAMM Semantic Aspect Meta Model.

SAMM is used to create data models, which are attached to e.g. digital twins in the form of an Asset Administration Shell (AAS) submodel or exchanged as JSON-File.

All submodels in Catena-X are managed in the Tractus-X GitHub repository. A data model is requested and exchanged via Catena-X using an Dataspace Connector (CX-0018 Dataspace Connectivity), which is a separate Catena-X standard.

1.3 CONFORMANCE AND PROOF OF CONFORMITY

This section is non-normative

As well as sections marked as non-normative, all authoring guidelines, diagrams, examples, and notes in this specification are non-normative. Everything else in this specification is normative.

The key words MAY, MUST, MUST NOT, OPTIONAL, RECOMMENDED, REQUIRED, SHOULD and SHOULD NOT in this document are to be interpreted as described in BCP 14 [RFC2119] [RFC8174] when, and only when, they appear in all capitals, as shown here.

All participants and their solutions will need to proof, that they are conform with the Catena-X standards. To validate that the standards are applied correctly, Catena-X employs Conformity Assessment Bodies (CABs).

See API Message Flow expectations for conformance requirements.

2 APPLICATION PROGRAMMING INTERFACES

This section and all its subsections are normative

Today, Certificate Consumer do not have a way to request certificates from a Certificate Provider. Also, Data Certificate Provider have no visibility on the feedback of a published certificate beyond the technical delivery. Finally, Certificate Provider do not have a standard mechanism to send new certificates to the Certificate Consumer when they become available.

Use cases to provide certificates (from who initiates communication, negotiation and data transfer):

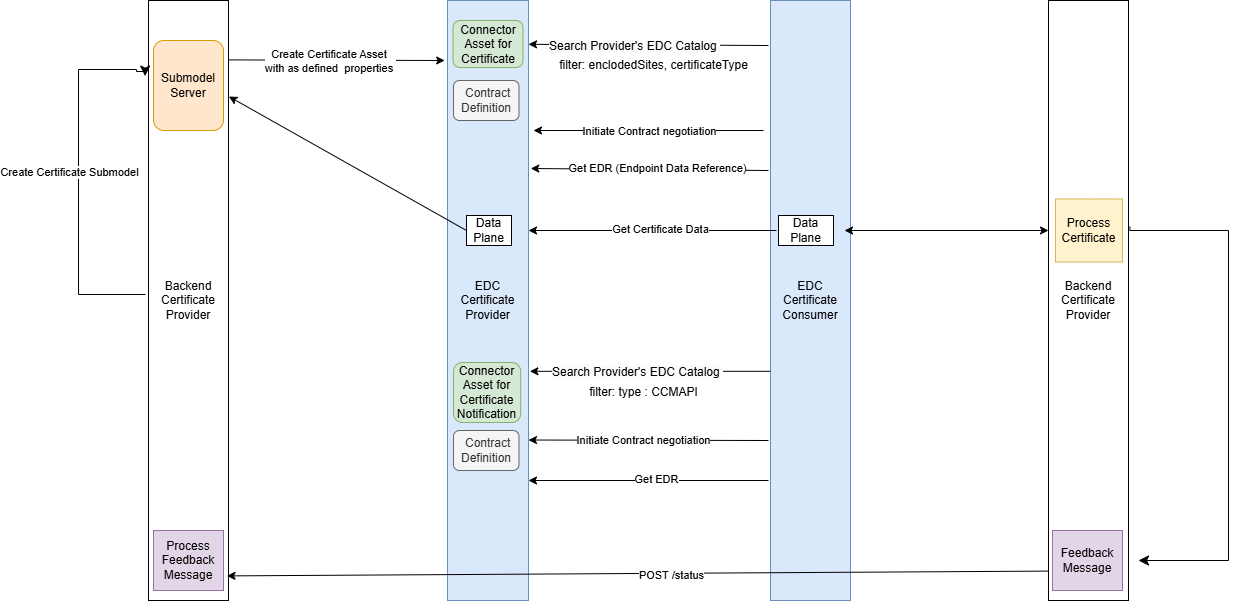

Certificate Consumer -> Certificate Provider: Company Certificate Pull
Certificate Provider -> Certificate Consumer: Company Certificate Push

Use case to give feedback on the status for consumed certificates:

Certificate Consumer -> Certificate Provider: Company Certificate Feedback (Received, Accepted, or Rejected)

Use case to notify about availability of certificates:

Certificate Provider -> Certificate Consumer: Company Certificate Available

2.1 API Specification

This section introduces the certificate management notification API which is further detailed in the corresponding OpenAPI specification.

2.1.1 API endpoints and resources

[!WARNING] senderFeedbackUrl explanation

This information is intended as a temporary solution to support the unique identification of multiple endpoints across multiple EDCs belonging to one legal entity. The typical way to implement such differentiation in the Catena-X data space would be to provide additional, distinguishing attributes to the EDC assets to enable an automated search mechanism via the EDC discovery service and EDC catalogs. Since the current changes are implemented as a non-breaking standard patch, the senderFeedbackUrl remains an intermediate solution. A future change is required in that regard, especially when considering the deprecation of the v1 DSP endpoint in favor of an upcoming EDC .well-known endpoint that supports multiple DSP versions. This attribute will be deprecated in future releases and it will no longer be possible to use it for specifying the endpoint to receive feedback on.

[!CAUTION] documentId explanation

The documentId in the payloads of the Request, Feedback, and Available notifications does not refer to the documentID of the certificate. Instead, it references the unique ID of the EDC asset of the certificate. This is different for the Push notification, where the certificate itself is in the payload and therefore the documentID of the certificate is referenced.

2.1.1.1 Company Certificate Request

The Certificate Consumer is requesting a specific certificate from the Certificate Provider.

alt text

POST /companycertificate/request

{
  "header": {
    "messageId": "urn:uuid:e4da568b-8cf1-4f5f-a96a-cf26265b2c72",
    "context": "CompanyCertificateManagement-CCMAPI-Request:1.0.0",
    "sentDateTime": "2024-10-07T10:15:00Z",
    "senderBpn": "BPNL0000000001AB",
    "receiverBpn": "BPNL0000000002CD",
    "relatedMessageId": "urn:uuid:e4da568b-8cf1-4f5f-a96a-cf26265b2c72",
    "version": "3.1.0"
  },
  "content": {
    "certifiedBpn": "BPNL00000003AYRE",
    "certificateType": "iso9001",
    "locationBpns": [
      "BPNA000000000001",
      "BPNA000000000002",
      "BPNS000000000003"
    ]
  }
}

locationBpns explanation: When a certificate is requested for multiple locations specified in locationBpns, the returned certificate's enclosedSites attribute may not cover all requested locations. However, it should include at least one of the specified locations.

2.1.1.1.1 HTTP Response Codes

HTTP Code	Description
200	OK. Certificate request processing completed (detailed response in body).
202	Certificate request accepted and in processing.
400	Request malformed.
500	Internal Server Error.

EDC Behavior: At the moment (standard release 25.09), the open-source EDC will always proxy a 500 internal server error when it encounters a 4xx or 5xx HTTP response code from the API. This means that in the case of a malformed request, while the API should return a 400 status code, the final EDC response that the consumer receives will be 500. Until a future EDC update changes this behavior to proxy all status codes without changes, applications will need to be able to deal with this technical reality.

The detailed response bodies for HTTP Code 200 are described in 2.1.1.1.2 and following. HTTP Status Codes 202, 400 and 500 do not come with a response body.

2.1.1.1.2 HTTP Response Body for HTTP Code 200, Status: IN PROGRESS

Case: Certificate Request Still In Process

{
  "header": {
    "messageId": "urn:uuid:e4da568b-8cf1-4f5f-a96a-cf26265b2c72",
    "context": "CompanyCertificateManagement-CCMAPI-Request:1.0.0",
    "sentDateTime": "2024-10-07T10:15:00Z",
    "senderBpn": "BPNL0000000001AB",
    "receiverBpn": "BPNL0000000002CD",
    "relatedMessageId": "urn:uuid:e4da568b-8cf1-4f5f-a96a-cf26265b2c72",
    "version": "3.1.0"
  },
  "content": {
    "requestStatus": "IN_PROGRESS"
  }
}

2.1.1.1.3 HTTP Response Body for HTTP Code 200, Status: COMPLETED

Finished Processing and Certificate available in EDC. The content body also provides the documentId of the certificate. This simplifies finding the correct offer for the requested certificate.

{
  "header": {
    "messageId": "urn:uuid:e4da568b-8cf1-4f5f-a96a-cf26265b2c72",
    "context": "CompanyCertificateManagement-CCMAPI-Request:1.0.0",
    "sentDateTime": "2024-10-07T10:15:00Z",
    "senderBpn": "BPNL0000000001AB",
    "receiverBpn": "BPNL0000000002CD",
    "relatedMessageId": "urn:uuid:e4da568b-8cf1-4f5f-a96a-cf26265b2c72",
    "version": "3.1.0"
  },
  "content": {
    "documentId": "00000000-0000-0000-0000-000000000001",
    "requestStatus": "COMPLETED"
  }
}

documentId explanation: The reasoning why a documentId (the unique ID of EDC asset of the certificate) is to be returned (and not for example the certificate as a return payload) is, so that the Certificate Provider can specify (for each certificate) a dedicated contract offer, and thus use different usage policies for the certificates and API(s). That way the Certificate Provider has all options available in terms of data sovereignty and full access control on an EDC (contract based) level.

2.1.1.1.4 HTTP Response Body for HTTP Code 200, Status: REJECTED

Finished Processing and Certificate Request Rejected. The request errors and location errors SHOULD contain all encountered problems in detail. The error message is free text.

{
  "header": {
    "messageId": "urn:uuid:e4da568b-8cf1-4f5f-a96a-cf26265b2c72",
    "context": "CompanyCertificateManagement-CCMAPI-Request:1.0.0",
    "sentDateTime": "2024-10-07T10:15:00Z",
    "senderBpn": "BPNL0000000001AB",
    "receiverBpn": "BPNL0000000002CD",
    "relatedMessageId": "urn:uuid:e4da568b-8cf1-4f5f-a96a-cf26265b2c72",
    "version": "3.1.0"
  },
  "content": {
    "requestStatus": "REJECTED",
    "requestErrors": [
      {
        "message": "We do not process certificates on Sunday"
      },
      {
        "message": "Can not provide certicate for requested locations"
      }
    ],
    "locationErrors": [
      {
        "bpn": "BPNS000000000003",
        "locationErrors": [
          {
            "message": "Site BPNS000000000003 is unknown"
          }
        ]
      }
    ]
  }
}

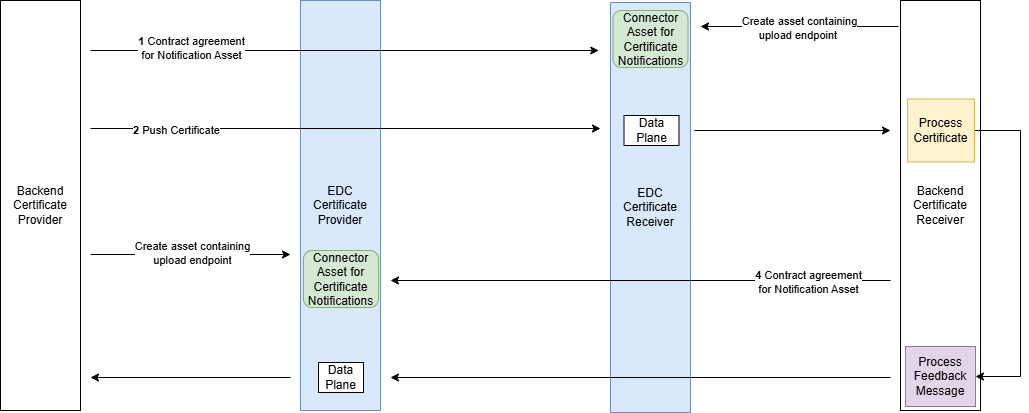

2.1.1.2 Company Certificate Push

Certificate is pushed by the Certificate Provider to the Certificate Consumer. The enclosed BPNs can be a mix of sites and addresses. The Certificate Consumer may want to send a subsequent feedback message.

POST /companycertificate/push

{
  "header": {
    "messageId": "urn:uuid:e4da568b-8cf1-4f5f-a96a-cf26265b2c72",
    "context": "CompanyCertificateManagement-CCMAPI-Push:1.0.0",
    "sentDateTime": "2024-10-07T10:15:00Z",
    "senderBpn": "BPNL0000000001AB",
    "receiverBpn": "BPNL0000000002CD",
    "relatedMessageId": "urn:uuid:e4da568b-8cf1-4f5f-a96a-cf26265b2c72",
    "version": "3.1.0",
    "senderFeedbackUrl": "https://domain.tld/path/to/edc/api/v1/dsp"
  },
  "content": {
    "businessPartnerNumber": "BPNL0000000001AB",
    "enclosedSites": [
      {
        "areaOfApplication": "Development, Marketing und Sales and also Procurement for interior components",
        "enclosedSiteBpn": "BPNS00000003AYRE"
      }
    ],
    "registrationNumber": "12 198 54182 TMS",
    "uploader": "BPNL0000000001AB",
    "document": {
      "documentID": "UUID--123456789",
      "creationDate": "2024-08-23T13:19:00.280+02:00",
      "contentType": "application/pdf",
      "contentBase64": "iVBORw0KGgoAAdsfwerTETEfdgd"
    },
    "validator": {
      "validatorName": "Data service provider X",
      "validatorBpn": "BPNL00000007YREZ"
    },
    "validUntil": "2026-01-24",
    "validFrom": "2023-01-25",
    "trustLevel": "none",
    "type": {
      "certificateVersion": "2015",
      "certificateType": "iso9001"
    },
    "areaOfApplication": "Development, Marketing und Sales and also Procurement for interior components",
    "issuer": {
      "issuerName": "TÜV",
      "issuerBpn": "BPNL133631123120"
    }
  }
}

The senderFeedbackUrl specifies, where the Certificate Provider expects feedback on the status from the Certificate Consumer. The expected value MUST be a concrete path to the version 1 dataspace protocol endpoint, where a data offer for an asset of type cx-taxo:CCMAPI MUST be available for the Certificate Consumer.

[!NOTE] documentID spelling

Please note that in contrast to other requests, the field documentID in the push notification request is spelled with a capital D due to the spelling in the aspect model and refers to the ID of the document of the certificate, not the unique ID of the EDC asset of the certificate.

2.1.1.3 Company Certificate Feedback

POST /companycertificate/status

This API is used by the Certificate Consumer to provide feedback on the status to the Certificate Provider, either accepting or rejecting the provided certificate. This applies regardless of whether the certificate was pulled or pushed.

If the certificate being given feedback on was consumed using the pull mechanism, the documentId in the payload must refer to the unique ID of the EDC asset of the certificate.

When the push mechanism was used, the relatedMessageId must be set to the messageId of the push notification for which feedback is being provided.

2.1.1.3.1 Company Certificate Feedback: Received

Certificate has been received by Certificate Consumer and validation is in progress.

{
  "header": {
    "messageId": "urn:uuid:e4da568b-8cf1-4f5f-a96a-cf26265b2c72",
    "context": "CompanyCertificateManagement-CCMAPI-Status:1.0.0",
    "sentDateTime": "2024-10-07T10:15:00Z",
    "senderBpn": "BPNL0000000001AB",
    "receiverBpn": "BPNL0000000002CD",
    "relatedMessageId": "urn:uuid:e4da568b-8cf1-4f5f-a96a-cf26265b2c72",
    "version": "3.1.0",
    "senderFeedbackUrl": "https://domain.tld/path/to/edc/api/v1/dsp"
  },
  "content": {
    "documentId": "00000000-0000-0000-0000-000000000002",
    "certificateStatus": "RECEIVED",
    "locationBpns": [
      "BPNS000000000001",
      "BPNS000000000002",
      "BPNS000000000003",
      "BPNA000000000001",
      "BPNA000000000002",
      "BPNA000000000003"
    ]
  }
}

2.1.1.3.2 Company Certificate Feedback: Accepted

Certificate is accepted. The documentId MUST match the documentId that was communicated by the certificate provider. The locationBpns can be a mix of sites and addresses.

{
  "header": {
    "messageId": "urn:uuid:e4da568b-8cf1-4f5f-a96a-cf26265b2c72",
    "context": "CompanyCertificateManagement-CCMAPI-Status:1.0.0",
    "sentDateTime": "2024-10-07T10:15:00Z",
    "senderBpn": "BPNL0000000001AB",
    "receiverBpn": "BPNL0000000002CD",
    "relatedMessageId": "urn:uuid:e4da568b-8cf1-4f5f-a96a-cf26265b2c72",
    "version": "3.1.0",
    "senderFeedbackUrl": "https://domain.tld/path/to/edc/api/v1/dsp"
  },
  "content": {
    "documentId": "00000000-0000-0000-0000-000000000001",
    "certificateStatus": "ACCEPTED",
    "locationBpns": [
      "BPNS000000000001",
      "BPNS000000000002",
      "BPNS000000000003",
      "BPNA000000000001",
      "BPNA000000000002",
      "BPNA000000000003"
    ]
  }
}

2.1.1.3.3 Company Certificate Feedback: Rejected

Certificate is rejected by the Certificate Consumer with one or multiple reasons.

{
  "header": {
    "messageId": "urn:uuid:e4da568b-8cf1-4f5f-a96a-cf26265b2c72",
    "context": "CompanyCertificateManagement-CCMAPI-Status:1.0.0",
    "sentDateTime": "2024-10-07T10:15:00Z",
    "senderBpn": "BPNL0000000001AB",
    "receiverBpn": "BPNL0000000002CD",
    "relatedMessageId": "urn:uuid:e4da568b-8cf1-4f5f-a96a-cf26265b2c72",
    "version": "3.1.0",
    "senderFeedbackUrl": "https://domain.tld/path/to/edc/api/v1/dsp"
  },
  "content": {
    "documentId": "00000000-0000-0000-0000-000000000003",
    "certificateStatus": "REJECTED",
    "certificateErrors": [
      {
        "message": "We do not process certificates on Sunday"
      },
      {
        "message": "Certificate has expired in 2024"
      },
      {
        "message": "Certificate was revoked"
      },
      {
        "message": "Unexpected data format"
      },
      {
        "message": "Unexpected language expected English, received Mandarin"
      },
      {
        "message": "Expected PDF, received JPG"
      },
      {
        "message": "Unknown BPNL000000000000"
      }
    ],
    "locationBpns": [
      "BPNS000000000001",
      "BPNS000000000002",
      "BPNS000000000003",
      "BPNA000000000001",
      "BPNA000000000002",
      "BPNA000000000003"
    ],
    "locationErrors": [
      {
        "bpn": "BPNS000000000002",
        "locationErrors": [
          {
            "message": "Site BPNS000000000002 has been Rejected"
          }
        ]
      },
      {
        "bpn": "BPNS000000000003",
        "locationErrors": [
          {
            "message": "Site BPNS000000000003 is missing"
          }
        ]
      }
    ]
  }
}

2.1.1.4 Company Certificate Available

The Certificate Consumer is notified that a certificate is available. The Certificate Consumer may want to consume the certificate via the pull mechanism.

{
  "header": {
    "messageId": "urn:uuid:e4da568b-8cf1-4f5f-a96a-cf26265b2c72",
    "context": "CompanyCertificateManagement-CCMAPI-Available:1.0.0",
    "sentDateTime": "2024-10-07T10:15:00Z",
    "senderBpn": "BPNL0000000001AB",
    "receiverBpn": "BPNL0000000002CD",
    "relatedMessageId": "urn:uuid:e4da568b-8cf1-4f5f-a96a-cf26265b2c72",
    "version": "3.1.0",
    "senderFeedbackUrl": "https://domain.tld/path/to/edc/api/v1/dsp"
  },
  "content": {
    "documentId": "00000000-0000-0000-0000-000000000001",
    "certificateType": "iso9001",
    "locationBpns": [
      "BPNS000000000001",
      "BPNS000000000002",
      "BPNS000000000003",
      "BPNA000000000001",
      "BPNA000000000002",
      "BPNA000000000003"
    ]
  }
}

2.1.2 ERROR HANDLING

The following HTTP response codes MUST be defined for all resources:

Status Code	Description
200	OK
500	Internal Server Error

2.1.3 Available data types

The API MUST use JSON formatted data transmitted over HTTPS.

2.1.4 Data asset structure

The following sections detail how notification API and certificate assets should be offered in the dataspace. Please note the depicted examples show @id fields with random example UUIDs. Every dataspace participant may use their individual random uuid.

2.1.4.1 Notification API

This section is normative

The HTTP endpoints introduced in chapter 2.1.1 API endpoints and resources MUST NOT be called from a business partner directly. Rather, it MUST be called with any CX-0018 compliant connector via dataspace protocol. Therefore, the Certificate Provider MUST offer an asset to expose an API for Certificate Consumer in the connector catalog. In turn, the Certificate Consumer MAY offer an asset to expose an API for the Certificate Provider in the connector catalog to push certificates to.

The property [type] MUST reference the name of the certificate management API as defined in the Catena-X taxonomy published under [taxonomy].

Type	Subject	Version	Description
cx-taxo:CCMAPI	cx-taxo:CompanyCertificateManagementNotificationApi	3.0	Offers Certificate Notification API for requesting and pushing certificates as well as sending feedback on the status for provided certificates and receiving availability notifications.

There MUST only be one unique asset per API (subject and version) across all connectors of one BPNL.

Example: it is possible to have these assets available next to one-another:

{ "dct:subject": { "@id": "cx-taxo:CompanyCertificateManagementNotificationApi" }, "cx-common:version": "3.0" },
{ "dct:subject": { "@id": "cx-taxo:CompanyCertificateManagementNotificationApi" }, "cx-common:version": "2.0" }

since they either differ in the value of the version or the subject. But it would not be possible to have two of the same subject and the same version.

Example that is not allowed:

{"dct:subject": { "@id": "cx-taxo:CompanyCertificateManagementNotificationApi" }, "cx-common:version": "3.0" },
{"dct:subject": { "@id": "cx-taxo:CompanyCertificateManagementNotificationApi" }, "cx-common:version": "3.0" }

It doesn't matter if the assets are offered in one or in different connectors, as long as they belong to the same BPNL this is not allowed.

Example Certificate Notification API

{
  "@id": "81a0bdf8-732f-488e-bddb-1b9a78f0d1e0",
  "@type": "Asset",
  "properties": {
    "dct:type": {
      "@id": "cx-taxo:CCMAPI"
    },
    "dct:subject": {
      "@id": "cx-taxo:CompanyCertificateManagementNotificationApi"
    },
    "dct:description": "Offers Certificate Notification API for requesting and pushing certificates as well as sending feedback on the status for provided certificates and receiving availability notifications.",
    "cx-common:version": "3.0"
  },
  "dataAddress": {
      "@type": "DataAddress",
      "type": "HttpData",
      "baseUrl": "https://backend-base-url/certificate-notification-api-base-path",
      "proxyQueryParams": "false",
      "proxyPath": "true",
      "proxyMethod": "false",
      "proxyBody": "true"
    },
  "@context": {
    "dct": "http://purl.org/dc/terms/",
    "cx-taxo": "https://w3id.org/catenax/taxonomy#",
    "cx-common": "https://w3id.org/catenax/ontology/common#"
  }
}

The API assets are identified by the combination of dct:subject and cx-common:version. When searching the EDC catalog for a specific API, make use of those properties in the catalog filter.

2.1.4.2 Certificates

The certificate assets MUST be created by the Certificate Provider in their connector catalog to be consumed by the Certificate Consumer when using the pull mechanism.
The property certificateType MUST reference the type of the certificate as defined in 3.2.2 Certificate Type.
The property enclosedSites MUST contain all BPNSs and BPNAs for which the certificate is valid.
The subject MUST reference cx-taxo:CompanyCertificate.
Additionally, the assets MUST contain the type cx-taxo:Submodel and the semanticId specified in 3.1.2 IDENTIFIER OF SEMANTIC MODEL.

Example Certificate EDC Asset:

{
  "@id": "d195fa2f-e6bc-4cd6-94d4-2bb76e4bb548",
  "@type": "Asset",
  "properties": {
    "dct:type": {
      "@id": "cx-taxo:Submodel"
    },
    "aas:semanticId": {
      "@id": "urn:samm:io.catenax.business_partner_certificate:3.1.0#BusinessPartnerCertificate"
    },
    "dct:certificateType": {
      "@id": "cx-taxo:iso9001"
    },
    "dct:enclosedSites": [
      {
        "@id": "cx-taxo:BPNS000000000001"
      },
      {
        "@id": "cx-taxo:BPNS000000000002"
      },
      {
        "@id": "cx-taxo:BPNA000000000001"
      }
    ],
    "dct:subject": {
      "@id": "cx-taxo:CompanyCertificate"
    },
    "dct:description": "Business Partner Company Certificate",
    "cx-common:version": "3.0"
  },
  "dataAddress": {
    "@type": "DataAddress",
    "type": "HttpData",
    "baseUrl": "https://backend-base-url/certificate-management-api-base-path",
    "proxyQueryParams": "false",
    "proxyPath": "false",
    "proxyMethod": "false",
    "proxyBody": "false"
  },
  "@context": {
    "dct": "http://purl.org/dc/terms/",
    "cx-taxo": "https://w3id.org/catenax/taxonomy#",
    "cx-common": "https://w3id.org/catenax/ontology/common#"
  }
}

The certificate assets are identified by the combination of dct:subject, dct:certificateType and dct:enclosedSites. When searching the EDC catalog for a specific asset for which the assetId is unkown, make use of those properties in the catalog filter.

2.1.5 MESSAGE FLOW EXPECTATIONS

Certificate Provider & Certificate Consumer:

Certificate Provider MUST support at least one of the certificate provision mechanisms (push and/or pull mechanism)
Certificate Provider MUST expose company certificates in their catalog when using the pull mechanism.
Certificate Provider MUST set the correct access and usage policy on the certificate offer to allow consumption by Consumer(s) when using the pull mechanism.
Certificate Consumer MAY implement the push endpoint for the Certificate Provider to push certificates to, but MUST set the correct access and usage policy on the offer, when choosing to do so.
Certificate Consumer MAY send a certificate request via POST /companycertificate/request which MUST be replied to by the Certificate Provider according to the endpoint definitions.
Certificate Consumer MAY send a notification of reception when the certificate validation has started via POST /companycertificate/status.
Certificate Consumer MAY send a notification of acceptance or rejection via POST /companycertificate/status. Certificate Provider MUST respond according to the error handling.
Certificate Provider MAY send a notification of availability via POST /companycertificate/available after the referenced company certificate is exposed in their catalog. Certificate Consumer MUST respond according to the error handling and SHOULD get the new certificate via the pull mechanism.
Certificate Consumer MAY implement the available endpoint for the Certificate Provider to send availability notifications to, but MUST set the correct access and usage policy on the offer, when choosing to do so.

Business Application Provider:

Business Application Provider MUST implement all features of the Certificate Notification API, including the support of the push, the pull and also the feedback and the available mechanism.
Business Application Provider MUST offer the push mechanism option to the application user, if the Certificate Consumer supports the push mechanism.

2.1.5.1 PUSH Mechanism

PUSH Scenarios

The Certificate PUSH Diagram describes the secure transmission of certificates from a Backend Certificate Provider to a Backend Certificate Consumer via EDC (Eclipse Data Connector) components. The process starts with a contract agreement for a Notification Asset, followed by the provider pushing the certificate to the provided endpoint in the asset. The certificate is then processed by the Backend Certificate Consumer, which finalizes the workflow by generating a feedback message which is pushed to the provider.

2.1.5.2 PULL Mechanism

PULL Scenarios

The Certificate PULL Diagram describes the process of Consumer retrieving a certificate from a Provider via an EDC. It begins with the provider creating a Certificate Asset with corresponding contract definition in the EDC Catalog. The Consumer searches the catalog using specific filters, initiates a contract negotiation, and retrieves the Endpoint Data Reference (EDR). The Data Plane then facilitates secure data transfer, allowing the consumer to pull the certificate. Once retrieved, the Backend Certificate Consumer processes the certificate and sends a feedback message to confirm the status.

2.1.5.3 AVAILABLE notification followed by PULL mechanism

After the Certificate Provider has created a Certificate Asset with the corresponding contract definition in the EDC Catalog, the Certificate Provider sends a Certificate Available Notification to the Certificate Consumer. The Certificate Consumer uses the above described PULL mechanism to get the certificate data. This reduces the Certificate Consumers need for active checks for missing certificates or certificate updates and enables access to the latest certificate data.

2.1.6 POLICY CONSTRAINTS FOR DATA EXCHANGE

In alignment with our commitment to data sovereignty, a specific framework governing the utilization of data within the Catena-X use cases has been outlined. As part of this data sovereignty framework, conventions for access policies, for usage policies and for the constraints contained in the policies have been specified in standard 'CX-0152 Policy Constraints for Data Exchange'. This standard document CX-0152 MUST be followed when providing services or apps for data sharing/consuming and when sharing or consuming data in the Catena-X ecosystem. What conventions are relevant for what roles named in 1.1 AUDIENCE & SCOPE is specified in the CX-0152 standard document as well. CX-0152 can be found in the standard library.

2.1.7 Usage Policy

All offers included in the EDC of a dataspace participant (APIs and Certificates) MUST contain a usage policy following the requirements referenced in paragraph 2.1.6. The use-case introduces the following usage purpose:

cx.ccm.base:1: The legal meaning is named in CX-0152 (see standard library).

Additional more general usage policies MAY be included, but all the usage policies MUST contain the above mentioned usage purpose as shown below.

Minimal example of a usage policy without contract reference:

{
  "@context": [
    "https://w3id.org/catenax/2025/9/policy/odrl.jsonld",
    "https://w3id.org/catenax/2025/9/policy/context.jsonld"
  ],
  "@type": "Set",
  "@id": "CCMAPI-usage-policy-without-contract-reference",
  "permission": [
    {
      "action": "use",
      "constraint": {
        "and": [
          {
            "leftOperand": "FrameworkAgreement",
            "operator": "eq",
            "rightOperand": "DataExchangeGovernance:1.0"
          },
          {
            "leftOperand": "UsagePurpose",
            "operator": "isAnyOf",
            "rightOperand": "cx.ccm.base:1"
          }
        ]
      }
    }
  ]
}

The constraint { "leftOperand": "cx-policy:ContractReference" } MUST be included only if such a bilateral framework contract exists.

{
  "leftOperand": "ContractReference",
  "operator": "isAllOf",
  "rightOperand": "x12345"
}

3 ASPECT MODELS

3.1 ASPECT MODEL "BusinessPartnerCertificate"

This section is normative

This aspect model is written in SAMM 2.1.0 as a modeling language conformant to CX-0003:1.1 as input for the semantic driven workflow.

Like all Catena-X data models, this model is available in a machine-readable format on GitHub conformant to CX-0003:1.1.

3.1.1 LICENSE

This Catena-X data model is made available under the terms of the Creative Commons Attribution 4.0 International (CC-BY-4.0) license, which is available at Creative Commons.

3.1.2 IDENTIFIER OF SEMANTIC MODEL

The semantic model has the unique identifier

urn:samm:io.catenax.business_partner_certificate:3.1.0

This identifier MUST be used by the Certificate Provider to define the semantics of the data being transferred.

3.1.3 FORMATS OF SEMANTIC MODEL

The RDF turtle file, an instance of the Semantic Aspect Meta Model, is the master for generating additional file formats and serializations.

Semantic model is defined here

The open source command line tool of the Eclipse Semantic Modeling Framework is used for generation of other file formats like for example a JSON Schema, AASX for Asset Administration Shell Submodel Template or a HTML documentation.

Info:
In the updated version of the data model (v3.1.0), the property enclosedSitesBpn accepts values of either BPNS or BPNA, whereas the previous version (v3.0.0) only supported BPNS. This update breaks backward compatibility because systems or applications relying on the previous model will not recognize or process the new BPNA value correctly. It is strongly RECOMMENDED to apply version 3.1.0 (or higher) for certification

3.2 TERMINOLOGY

This section is non-normative.

In this section the different parts of the data model are explained.

3.2.1 BPNL BUSINESS PARTNER NUMBER LEGAL ENTITY

A Business Partner Number Legal Entity (BPNL) represents and uniquely identifies a Legal Entity, which is defined by its legal name (including Legal Form, if registered), legal Address and Tax Number. For further details on BPNLs please see standard CX-0010:2.0 Business Partner Number.

For this standard and the data model the BPNL is the BPN id of the certified legal entity (on which the certificate is issued).

Attribute: businessPartnerNumber

3.2.2 CERTIFICATE TYPE

The attribute CertificateType refers to the type of the certificate the BPN is certified for. This data model is generic and currently supports, but is not limited to, the following list of certificate types:

IATF 16949 (International Automotive Task Force) is a standard that defines the requirements for a quality management system in the automotive industry.
ISO 14001 is a standard that outlines the requirements for an environmental management system to help organizations minimize their impact on the environment.
ISO 9001 is a standard that sets out the requirements for a quality management system to help organizations consistently provide products and services that meet customer and regulatory requirements.
ISO 45001, OHSAS 18001 or national certification are occupational health and safety management system standards that help companies identify and manage workplace hazards to prevent accidents and injuries.
ISO/IEC 27001 is an information security management system standard that provides a framework for companies to manage and protect their sensitive information.
ISO 50001 or national certification is an energy management system standard that helps companies improve energy efficiency and reduce costs.
ISO/IEC 17025 is a laboratory accreditation standard that ensures the accuracy and reliability of testing and calibration results.
ISO 20000 is an IT service management system standard that helps companies deliver high-quality IT services to their customers.
ISO 22301 is a business continuity management system standard that helps companies prepare for and respond to unexpected disruptions to their operations.
AEO (Authorized Economic Operator), CTPAT (Customs-Trade Partnership Against Terrorism), Security Declaration is an internationally recognized certificate that confirms a company's compliance with customs regulations and supply chain security standards. CTPAT (Customs-Trade Partnership Against Terrorism) is a voluntary program that promotes supply chain security and trade compliance with U.S. Customs and Border Protection. Security Declaration is a document that outlines a company's security measures and procedures for the transportation of goods.
VDA6.4 is a standard that defines the requirements for a quality management system in the automotive industry, with a focus on process auditing.

Additional certificate types will be validated in the future, and others may already be compatible with this generic model.

For the exchange certificate types you MUST adhere to the following spelling rules:

Only latin letters and numbers are allowed
All letters are in lowercase
No whitespaces, underscores or any other special characters are allowed

Applying these rules to the supported list of certificate types leads to the following codes:

Name	Code
IATF 16949	iatf16949
ISO 14001	iso14001
ISO 9001	iso9001
ISO 45001	iso45001
OHSAS 18001	ohsas18001
ISO/IEC 27001	isoiec27001
ISO 50001	iso50001
ISO/IEC 17025	isoiec17025
ISO 20000	iso20000
ISO 22301	iso22301
AEO	aeo
CTPAT	ctpat
VDA6.4	vda64

3.2.3 REGISTRATION AND ISSUING

The issuing authority is the authority that issues a certificate - e.g. TUEV Sued. The registration number is the unique identifier of the certificate at the certification authority / issuing body.

Example: ISO 9001 certificate is issued by TUEV Süd, which is the certification authority.

3.2.4 AREA OF APPLICATION

The attribute areaOfApplication refers the area of applications for the given certification i.e. additional details.

3.2.5 ENCLOSED SITES / ADDRESSES

This attribute enclosedSites is closely linked to the Business Partner Number (BPN) and indicates additional sites, such as production or engineering sites, that are covered by the certificate. In other words, the certificate is valid not only for the primary BPN, but also for any associated sites (BPNS). This attribute is particularly useful for companies with multiple locations or business units, as it allows them to manage certificates more efficiently and ensures that all relevant sites are covered by the certificate.

Note: If no BPNS is available, the use of the Business Partner Number Address (BPNA) is also allowed within this attribute.

3.2.6 VALIDITY

The attribute validity refers to the date from which the certificate is valid. If it is not defined, it is recommended to use the date of issue/signature of the document. In connection with the valid-from date, there is the valid-to date for a certificate - 31.12.9999 for no expiration date.

3.2.7 TRUST LEVEL

This data object defines the trust level of the certificate.

The certificates are provided in the business context by the company itself - they are showing their certificates to other companies. Not every certificate can be directly validated by the issuing authority. That is why there are different trust levels defined: none / low / high / trusted.

None: no validation check at all, just uploaded / provided by the company
Low: manual validation check done by human after upload
Medium: certificate provided by trusted issuer and manually checked (as low)
High: automated cross check via some database (e.g. TÜV, IATF)
Trusted: directly provided by issuer (e.g. TÜV)

3.2.8 VALIDATOR

The validator is the one who can validate certificate information. In the best way it is the authority that is issuing the certificates but there can be other validators. This attribute has a relation to the trust level.

E.g. Business service providers that offer a validation service for company certificates.

Note: The property validatorBpn expects the BPNL as the default. However, if deemed necessary, this property can be used as a free text field (string).

3.2.9 CERTIFICATE UPLOADER

The attribute uploader defines the company (uploader) who originally provided the given certificate (e.g. company A provided it to business application provider B, business application provider B is a trusted validator). This company is also identified by a BPN.

3.2.10 DOCUMENT ID

The internal reference id to request a certificate document.

3.2.11 CERTIFICATE PROVIDER AND CERTIFICATE CONSUMER

This subsection is normative

The entities Certificate Provider and Certificate Consumer are central to the certificate exchange mechanisms defined in this standard.

Certificate Provider: A Certificate Provider is an entity that offers company certificates to other Catena-X participants. The Certificate Provider is responsible for creating and maintaining certificate assets in their EDC catalog, responding to certificate requests, and optionally pushing certificates directly to Certificate Consumers or notifying them about certificate availability.

Certificate Consumer: A Certificate Consumer is an entity that requests, receives, and validates company certificates from Certificate Providers. The Certificate Consumer may actively request certificates, provide feedback on certificate status, and respond to availability notifications.

The following table illustrates the entities in relation to the supported certificate exchange mechanisms:

Mechanism	Certificate Provider	Certificate Consumer
PULL	Provider - Creates certificate assets in EDC catalog	Consumer - Discovers certificates in catalog, negotiates contract, retrieves certificate via EDC
PUSH	Consumer - Initiates connection to Certificate Consumer's CCMAPI, pushes certificate data directly	Provider - Offers CCMAPI as EDC asset, receives and processes pushed certificates
REQUEST	Provider - Offers CCMAPI as EDC asset, processes incoming certificate requests	Consumer - Sends certificate request to Certificate Provider's CCMAPI
FEEDBACK	Provider - Offers CCMAPI as EDC asset, receives and processes feedback messages	Consumer - Sends feedback (received, accepted, rejected) to Certificate Provider's CCMAPI
AVAILABLE	Consumer - Sends availability notification to Certificate Consumer's CCMAPI	Provider - Offers CCMAPI as EDC asset, receives notification about certificate availability

Note: The roles of Provider and Consumer in the EDC context may differ from the business entities of Certificate Provider and Certificate Consumer, depending on the mechanism used. This is why the standard explicitly uses the terms Certificate Provider and Certificate Consumer to avoid ambiguity.

4 REFERENCES

4.1 NORMATIVE REFERENCES

4.2 NON-NORMATIVE REFERENCES

This section is non-normative

CCX-0001:1.2 Participant Agent Registration

4.3 REFERENCE IMPLEMENTATIONS

This section is non-normative

not applicable

ANNEXES

FIGURES

This section is non-normative

not applicable

TABLES

This section is non-normative

not applicable

ABSTRACT​

FOR WHOM IS THE STANDARD DESIGNED​

1 INTRODUCTION​

1.1 AUDIENCE & SCOPE​

1.2 CONTEXT AND ARCHITECTURE FIT​

1.3 CONFORMANCE AND PROOF OF CONFORMITY​

2 APPLICATION PROGRAMMING INTERFACES​

2.1 APIAPI An API is a way for two or more computer programs to communicate with each other. Specification​

2.1.1 APIAPI An API is a way for two or more computer programs to communicate with each other. endpoints and resources​

2.1.1.1 Company Certificate Request​

2.1.1.1.1 HTTPHTTP HTTP is an application-layer protocol for transmitting hypermedia documents (such as HTML). It was designed for communication between web browsers and web servers, but can also be used for other purposes. Response Codes​

2.1.1.2 Company Certificate Push​

2.1.1.3 Company Certificate Feedback​

2.1.1.3.1 Company Certificate Feedback: Received​

2.1.1.3.2 Company Certificate Feedback: Accepted​

2.1.1.3.3 Company Certificate Feedback: Rejected​

2.1.1.4 Company Certificate Available​

2.1.2 ERROR HANDLING​

2.1.3 Available data types​

2.1.4 Data assetAsset On the Data Provider side, an Asset describes the data set which will be shared or can be consumed by a Data Consumer. structure​

2.1.4.1 Notification APIAPI An API is a way for two or more computer programs to communicate with each other.​

2.1.4.2 Certificates​

2.1.5 MESSAGE FLOW EXPECTATIONS​

2.1.5.1 PUSH Mechanism​

2.1.5.2 PULL Mechanism​

2.1.5.3 AVAILABLE notification followed by PULL mechanism​

2.1.6 POLICY CONSTRAINTS FOR DATA EXCHANGE​

2.1.7 Usage Policy​

3.1.1 LICENSE​

3.1.2 IDENTIFIER OF SEMANTIC MODEL​

3.1.3 FORMATS OF SEMANTIC MODEL​

3.2 TERMINOLOGY​

3.2.1 BPNLBPNL The unique identifier of a legal entity of a partner within Catena-X (e.g., a company). BUSINESS PARTNER NUMBER LEGAL ENTITY​

3.2.2 CERTIFICATE TYPE​

3.2.3 REGISTRATION AND ISSUING​

3.2.4 AREA OF APPLICATION​

3.2.5 ENCLOSED SITES / ADDRESSES​

3.2.6 VALIDITY​

3.2.7 TRUST LEVEL​

3.2.8 VALIDATOR​

3.2.9 CERTIFICATE UPLOADER​

3.2.10 DOCUMENT ID​

3.2.11 CERTIFICATE PROVIDER AND CERTIFICATE CONSUMER​

4 REFERENCES​

4.1 NORMATIVE REFERENCES​

4.2 NON-NORMATIVE REFERENCES​

4.3 REFERENCE IMPLEMENTATIONS​

ANNEXES​

FIGURES​

TABLES​

Legal​

ABSTRACT

FOR WHOM IS THE STANDARD DESIGNED

1 INTRODUCTION

1.1 AUDIENCE & SCOPE

1.2 CONTEXT AND ARCHITECTURE FIT

1.3 CONFORMANCE AND PROOF OF CONFORMITY

2 APPLICATION PROGRAMMING INTERFACES

2.1 API Specification

2.1.1 API endpoints and resources

2.1.1.1 Company Certificate Request

2.1.1.1.1 HTTP Response Codes

2.1.1.2 Company Certificate Push

2.1.1.3 Company Certificate Feedback

2.1.1.3.1 Company Certificate Feedback: Received

2.1.1.3.2 Company Certificate Feedback: Accepted

2.1.1.3.3 Company Certificate Feedback: Rejected

2.1.1.4 Company Certificate Available

2.1.2 ERROR HANDLING

2.1.3 Available data types

2.1.4 Data asset structure

2.1.4.1 Notification API

2.1.4.2 Certificates

2.1.5 MESSAGE FLOW EXPECTATIONS

2.1.5.1 PUSH Mechanism

2.1.5.2 PULL Mechanism

2.1.5.3 AVAILABLE notification followed by PULL mechanism

2.1.6 POLICY CONSTRAINTS FOR DATA EXCHANGE

2.1.7 Usage Policy

3.1.1 LICENSE

3.1.2 IDENTIFIER OF SEMANTIC MODEL

3.1.3 FORMATS OF SEMANTIC MODEL

3.2 TERMINOLOGY

3.2.1 BPNL BUSINESS PARTNER NUMBER LEGAL ENTITY

3.2.2 CERTIFICATE TYPE

3.2.3 REGISTRATION AND ISSUING

3.2.4 AREA OF APPLICATION

3.2.5 ENCLOSED SITES / ADDRESSES

3.2.6 VALIDITY

3.2.7 TRUST LEVEL

3.2.8 VALIDATOR

3.2.9 CERTIFICATE UPLOADER

3.2.10 DOCUMENT ID

3.2.11 CERTIFICATE PROVIDER AND CERTIFICATE CONSUMER

4 REFERENCES

4.1 NORMATIVE REFERENCES

4.2 NON-NORMATIVE REFERENCES

4.3 REFERENCE IMPLEMENTATIONS

ANNEXES

FIGURES

TABLES

Legal
