CX-0125 Traceability Use Case v2.0.0

ABSTRACT​

This standard is used to define the basic rules to participate in the Traceability Use Case.

The use case is based on the industry core and uses the digital twins and aspect models of the industry core. Furthermore it includes use case-specific aspect models (e.g. TractionBatteryCode) that go beyond the industry core and are used to make various entities in the network, such as parts, traceable.

In addition, this document contains necessary standards for applications to send standardized notifications to exchange Quality Alerts and Quality Investigations in Catena-X. Quality Investigations refer to sending standardised notifications to suppliers (top-down) while Quality Alerts refer to sending notifications to customers (bottom-up). Those notifications will enable the industry to exchange and act upon quality issues in a more standardised, integrated, accelerated and precise manner. This document describes the minimal requirements of the notification process a traceability application or application stack needs to fulfill for being interoperable within the Catena-X platform as well as the specific API endpoints and their integration into IDSA conform data assets.

FOR WHOM IS THE STANDARD DESIGNED  ​

This standard is designed for everybody who wants to participate in the traceability use case.

The following features are provided:

  • Traceability of products (e.g. vehicles), parts and material (physical assets)
  • Notification of quality issues within the value chain

COMPARISON WITH THE PREVIOUS VERSION OF THE STANDARD​

  • Redundancies to the standard CX-0127 in all relevant chapters removed: Submodel SerialPart, Submodel Batch, Submodel SingleLevelBoMAsBuilt
  • Adapted parts (introductions, examples) of the standard document contents to suit the use case specifications
  • Quality Alerts are set to mandatory
  • New paragraph "Conventions for Use Case Policy in context data exchange" in Section 2.1.3
  • Added notes for versioning in Section 2.1.3
  • Deleted "Every certified business application relying on aspects models of this standard MUST be able to consume data conformant to the semantic models specified in this document." from Section 3
  • Deleted old references in Section 6.1

Note: This release (24.05.) contains breaking changes!

1 INTRODUCTION​

This document summarizes all standards to be supported by a network participants IT infrastructure to participate for the Use Case Traceability. This involves protocols, semantic models and platform capabilities to be used.

1.1 AUDIENCE & SCOPE​

This section is non-normative

This document is targeting subsets of the following roles:

  • Data Provider (only for notifications) / Consumer
  • Business Application Provider
  • Enablement Service Provider

Furthermore, this standard applies to Traceability Applications or Application stacks and participants that

  • want to provide (only for notifications) and/or consume data
  • want to exchange quality notifications and quality investigations data leveraging Traceability solutions (not to be a general solution pattern for notifications across various use cases (api, process), only for sending and receiving of quality notifications in a traceability context)

Note: Fulfilling a use-case standard by a data provider / consumer can be done in two ways:

  1. Purchase a certified app for the use-case. In this case the data provider / consumer does not need to prove conformity again and
  2. Data Provisioning / Consumption without a certified app for the use-case.

1.2 CONTEXT AND ARCHITECTURE FIT​

This section is non-normative

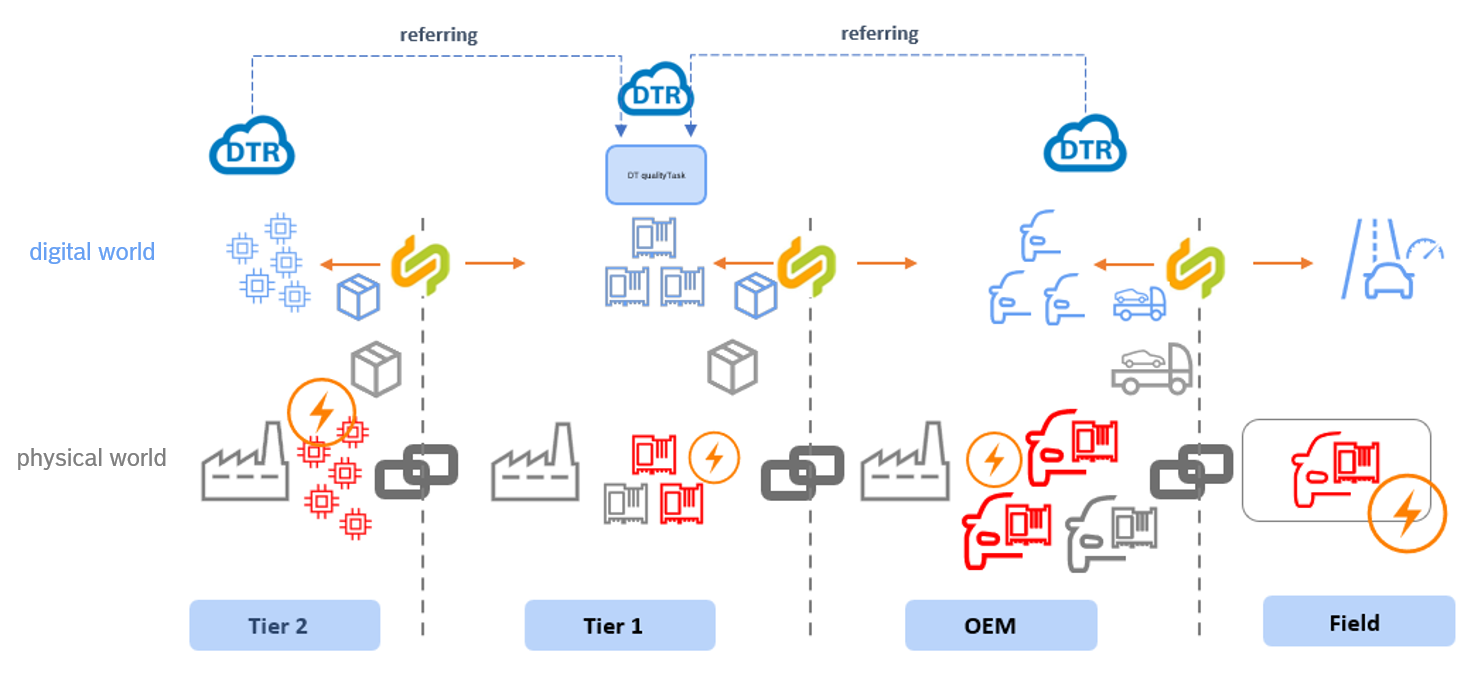

Traceability of parts and materials is crucial in the automotive industry to enable e.g. quality management and circular economy. So, the aim of the Use Case Traceability is to trace physical parts and materials across the entire value creation chain to enable data driven use cases over all n-tier levels without compromising data sovereignty.

In order to create this transparency on physical assets, relevant data must be made available by all participants of a value chain. This process is described in the standard CX - 0127 INDUSTRY CORE: PART INSTANCE 2.0.0. This standard enables data and app providers to deliver solutions for building data chains for serialized parts or batches. This is achieved via the standardized creation of digital twins of vehicles, parts and materials as well as the logical linking to their sub-components (Bill of Material, BoM). The default visibility of digital twins and their respective semantic models follows the one-up/one-down principle.

By tracking and tracing back the sourcing of serialized parts or batches, manufactures can quickly identify the source of any quality issue and take corrective actions to address them. Comprehensive traceability across the value creation network enables the automotive and further industries to quickly respond to any quality issues in their supply chain. Standardized Quality Alerts and Quality Investigations based on Part Instance digital twins may be used for this purpose within the Catena-X network.

The following figure provides an overview of the architecture of all components involved in relation to quality notifications.

CX0125_notification_architecture_level_1.svg

Figure 1: Architecture Overview

1.3 CONFORMANCE AND PROOF OF CONFORMITY​

This section is non-normative

Sections marked as non-normative, all authoring guidelines, diagrams, examples, and notes in this specification are non-normative. Everything else in this specification is normative.

The key words MAY, MUST, MUST NOT, OPTIONAL, RECOMMENDED, REQUIRED, SHOULD and SHOULD NOT in this document are to be interpreted as described in BCP 14 [RFC2119] [RFC8174] when, and only when, they appear in all capitals, as shown here.

All participants* and their solutions will need to prove, that they are conform with the Catena-X standards. To validate that the standards are applied correctly, Catena-X employs Conformity Assessment Bodies (CABs). Please refer to: https://catena-x.net/en/catena-x-introduce-implement/certification for the process of conformity assessment and certification.

Since this document describes a set of standards to be fulfilled, participants MUST fulfill all mentioned standards and the respective conformity assessment criteria in addition to the specific criteria mentioned in this document.

The specific criteria defined in this document are describing the usage of the central tools as well as common tools described in the linked standardization documents and therefore compliance SHOULD BE checked with the tools provided for these components.

The proof of conformity for a single semantic model is done according to the general rules for proving the conformity of data provided to a semantic model or the ability to consume the corresponding data.

In terms of conformity the openAPI specification of the application or endpoints being exposed via the Tractus-X EDC or any other CX-0018 compliant connector MUST be checked against the standardized openAPI specification.

Examples of data assets and contract offer structure in the Tractus-X EDC or any other CX-0018 compliant connector MUST correspond to the described structure.

The versions of the standardization documents valid for this standard are mentioned in sections where the standalone standards, normative references and non-normative references are listed. The valid versions are not specifically mentioned in the body text.

*Disclaimer: The operating model released by the Catena-X association will define the roadmap, content and scope for the certification process. This will include the roles, certification and further assessment procedures as well as the rollout phases.

1.4 EXAMPLES​

Examples for data models: See according subsection 3 Aspect Models.

Examples for APIs: See according subsection 4 APPLICATION PROGRAMMING INTERFACES

1.5 TERMINOLOGY​

This section is non-normative

Application Programming Interface (API): An API is a way for two or more computer programs to communicate with each other.

Aspect Model: A formal, machine-readable semantic description (expressed with RDF/turtle) of data accessible from an aspect.

Note 1 to entry: An Aspect Model must adhere to the Semantic Aspect Meta Model (SAMM), i.e., it utilizes elements and relations defined in the Semantic Aspect Meta Model and is compliant to the validity rules defined by the Semantic Aspect Meta Model.

Note 2 to entry: Aspect Models are logical data models which can be used to detail a conceptual model in order to describe the semantics of runtime data related to a concept. Further, elements of an Aspect model can/should refer to terms of a standardized Business Glossary (if existing).

[Source: Catena-X, CX-0002, note 3 removed]

Asset: An Asset describes on Data Provider side the data set which will be shared or can be consumed by a Data Consumer.

Asset Administration Shell (AAS): The AAS is a digital representation of an asset. It is a form of a digital twin.

Bill of Material (BoM): A bill of material resembles the structure of a product. It is a list of all raw materials, sub-assemblies and sub-components that are needed to manufacture the end procuct. At Catena-X Traceability we consider more than one single BoM. The BoM changes during the lifecyle and therefore, we are talking about different BoMs in different lifecycles.

Business Partner Number (BPN): A BPN is the unique identifier of a partner within Catena-X.

Tractus-X Eclipse Dataspace Connector (Tractus-X EDC): The Tractus-X EDC is a reference implementation for a connector conformant to CX-0018 currently acting as a de-facto standard and/or reference Implementation within Catena-X. When mentioning the Tractus-X EDC in this standard, any other CX-0018 conformant connector is also a valid option.

HTTP: Hypertext Transfer Protocol (HTTP) is an application-layer protocol for transmitting hypermedia documents, such as HTML. It was designed for communication between web browsers and web servers, but it can also be used for other purposes.

International Data Space Association (IDSA): The IDSA is on a mission to create the future of the global, digital economy with International Data Spaces (IDS), a secure, sovereign system of data sharing in which all participants can realize the full value of their data.

International Data Space (IDS): The International Data Space enables new "smart services" and innovative business processes to work across companies and industries while ensuring that the self-determined control of data use (data sovereignty) remains in the hands of data providers.

IDSA Protocol: The IDSA Protocol being used for data exchange in an International Dataspace. This includes contract negotiation.

Part Instance: A part instance is a physically produced instance (e.g. serialized part, batch, just-in-sequence-part) of a part type.

Serialized part: Instance of a part, where the particular instance can be uniquely identified by means of a serial number, a similar identifier (e.g. VAN) or a combination of multiple identifiers (e.g. combination of manufacturer, date and number).

Subcomponent: A Subcomponent is a separate product that can be assembled into a customer product.

UML: The unified modeling language (UML) is a general-purpose visual modeling language that is intended to provide a standard way to visualize the design of a system. UML provides a standard notation for many types of diagrams which can be roughly divided into three main groups: behavior diagrams, interaction diagrams, and structure diagrams.

Vehicle Anonymised Number (VAN): A number mapped 1:1 to VIN, but pseudonomised.

Vehicle Identification Number (VIN): The VIN number is a 17-character code assigned by the manufacturer to every vehicle, providing specific information about its make, model, year of manufacture, and other key features. It is a unique identifier that allows the vehicle to be easily tracked and identified throughout its lifespan.  Additional terminology used in this standard can be looked up in the glossary on the association homepage.

2 RELEVANT PARTS OF THE STANDARD FOR SPECIFIC USE CASES​

This section is normative

2.1 "QUALITY NOTIFICATIONS AND DATA EXCHANGE"​

This chapter describes and collects necessary standards for applications that enable the standardized exchange of Quality Alert and Quality Investigation in Catena-X. Quality refer to sending standardised notifications to suppliers (top-down) while Quality Alerts refer to sending notifications to customers (bottom-up). Those notifications will enable the industry to exchange and act upon quality issues in a more standardised, integrated, accelerated and precise manner.

It is tightly bound to the Industry Core, as Quality Alerts and Quality Investigation Requests should reference batches and/or serialized part instances as described in the standard CX - 0127 INDUSTRY CORE: PART INSTANCE.

The standards for Traceability and Industry Core: Part Instance serve as an enabler for the standardized exchange of Quality Alert and Quality Investigations by introducing network-wide unique identifiers for serialized parts or batches. Its linked standards are to be used in order to be interoperable.

2.1.1 LIST OF STANDALONE STANDARDS​

This section is normative

To participate in Notifications, the following single standards MUST be fulfilled by all participants for which the standard is relevant:

  • CX-0001 EDC DISCOVERY API 1.0.2
  • CX-0002 DIGITAL TWINS IN CATENA-X 2.2.0
  • CX-0018 DATASPACE CONNECTIVITY 3.0.0
  • CX-0127 INDUSTRY CORE: PART INSTANCE 2.0.0

2.1.2 DATA REQUIRED​

A digital twin MAY be created for serialized part or batch of materials produced by the manufacturer. The digital twin MUST be provisioned via an Asset Administration Shell as per CX-0002 and registered in a decentral Digital Twin Registry of the data provider (or the decentral Digital Twin Registry host of the manufacturer) as described in CX-0002.

The IDS protocol as described in CX-0018 MUST be followed in the data exchange.

2.1.3 ADDITIONAL REQUIREMENTS​

As the IDS protocol is being used, data MUST NOT be transferred before a corresponding contract negotiation has been successfully passed by the participants of the data exchange and a valid contract is present as described in CX-0018.

The described Notification Process and especially status schema MUST be supported.

4.1 QUALITY NOTIFICATION API  ​

The described Notification API MUST be provisioned in order to receive Quality Alerts or Quality Investigation. The required data offers for Quality Alerts and Quality Investigations MUST be created and linked to the described endpoints of the Notification API.

Conventions for Use Case Policy in context data exchange​

In alignment with our commitment to data sovereignty, a specific framework governing the utilization of data within the Catena-X use cases has been outlined. A set of specific policies on data offering and data usage level detail the conditions under which data may be accessed, shared, and used, ensuring compliance with legal standards.

For a comprehensive understanding of the rights, restrictions, and obligations associated with data usage in the Catena-X ecosystem, we refer users to

  • the detailed ODRL policy repository. This document provides in-depth explanations of the terms and conditions applied to data access and utilization, ensuring that all engagement with our data is conducted responsibly and in accordance with established guidelines.
  • the ODRL schema template. This defines how policies used for data sharing/usage should get defined. Those schemas MUST be followed when providing services or apps for data sharing/consuming.
Additional Details regarding Access Policies​

A Data Provider may tie certain access authorizations ("Access Policies") to its data offers for members of Catena-X and one or several Data Consumers. By limiting access to certain Participants, Data Provider maintains control over its anti-trust obligations when sharing certain data. In particular, Data Provider may apply Access Policies to restrict access to a particular data offer for only one Participant identified by a specific business partner number:

  • Membership
  • BPNL
Additional Details regarding Usage Policies​

In the context of data usage policies (“Usage Policies”), Participants and related services MUST use the following policy rules:

  • Use Case Framework (“FrameworkAgreement”)
  • at least one use case purpose (“UsagePurpose”) from the above mentioned ODRL policy repository.

Additionally, respective usage policies MAY include the following policy rule:

  • Reference Contract (“ContractReference”).

Details on namespaces and ODRL policy rule values to be used for the above-mentioned types are provided via the ODRL policy repository.

Versioning​

The Aspect Models that are deployed as Digital Twins MUST be published in dcat:Dataset (http://www.w3.org/ns/dcat#) in the property that holds the full URN of the Aspect Model https://admin-shell.io/aas/3/0/HasSemantics/semanticId. Versions are explicitly contained in the URN. The API versions MUST be published in the property https://w3id.org/catenax/ontology/common#version as version X.Y in dcat:Dataset (http://www.w3.org/ns/dcat#). Note: Data Assets differentiated only by major version MUST be offered in parallel. The current standard and API versions mark the start of Life Cycle Management in Catena-X operations. Previous versions are dismissed.

3 ASPECT MODELS​

This section is normative

An overview of the relevant aspect models of this standard.

  • TractionBatteryCode

If a data provider decides to provide data on aspect models of this standard they MUST provide the data conformant to the semantic models specified in this document.

Data consumers and data provider MUST comply with the license of the semantic models.

The submodel data MUST be transferred using the IDS Protocol as described in CX-0018. The Tractus-X EDC as a reference implementation is RECOMMENDED to be used as a connector conformant to CX-0018.

Data providers MUST provide data as part of a digital twin of the asset for serialized parts conformant to CX–0002. The JSON Payloads of data providers MUST be conformant to the JSON Schemas as specified in this document.

The unique identifier of the semantic model specified in this document MUST be used by the data provider to define the semantics of the data being transferred.

3.1 ASPECT MODEL "TractionBatteryCode"​

3.1.1 INTRODUCTION  ​

This semantic model describes a submodel for a digital twin of a traction battery or a respective subcomponent (pack, module or cell). This aspect model provides information about the traction battery code of a battery component. A traction battery code is an identification code according to GB/T 34014-2017 which has to be provided when exporting automotive traction batteries to the People's Republic of China. In addition to the traction battery code, the model also contains classification of the corresponding battery component and all subcomponents.

On the lowest level, the cell level, the model contains only the traction battery code for the cell and the information on the classification which describes if the corresponding part is a cell, a module or a pack. On the middle level, the module level, the model contains the same information for the module (code and classification). In addition to that, however, it also includes a list of the cells information that are assembled into the module. Analogue to this, on pack level, the model contains the information of the pack itself as well as the information of the modules assembled into the pack and the cells assembled into the modules.

By accessing this aspect you can get all traction battery codes that are a part of the corresponding part of the traction battery.

Note: The presented aspect model is in version 2.0.0 and optional.

3.1.2 SPECIFICATIONS ARTIFACTS​

The modeling of the semantic model specified in this document was done in accordance to the "semantic driven workflow" to create a submodel template specification SMT.

This aspect model is written in SAMM 2.1.0 as a modeling language conformant to CX-0003 as input for the semantic driven workflow.

Like all Catena-X data models, this model is available in a machine-readable format on GitHub conformant to CX-0003.

3.1.3 LICENSE​

This Catena-X data model is made available under the terms of the Creative Commons Attribution 4.0 International (CC-BY-4.0) license, which is available at Creative Commons.

3.1.4 IDENTIFIER OF SEMANTIC MODEL​

The semantic model has the unique identifier

urn:samm:io.catenax.traction_battery_code:2.0.0#TractionBatteryCode

3.1.5 FORMATS OF SEMANTIC MODEL​

3.1.5.1 RDF TURTLE​

The rdf turtle file, an instance of the Semantic Aspect Meta Model, is the master for generating additional file formats and serializations.

TractionBatteryCode v2.0.0 (optional)

https://github.com/eclipse-tractusx/sldt-semantic-models/blob/main/io.catenax.traction_battery_code/2.0.0/TractionBatteryCode.ttl

The open source command line tool of the Eclipse Semantic Modeling Framework is used for generation of other file formats like for example a JSON Schema, AASX for Asset Administration Shell Submodel Template or a HTML documentation.

3.1.5.2 JSON SCHEMA​

A JSON Schema can be generated from the RDF Turtle file. The JSON Schema defines the Value-Only payload of the Asset Administration Shell for the API operation "GetSubmodel".

3.1.5.3 AASX​

An AASX file can be generated from the RDF Turtle file. The AASX file defines one of the requested artifacts for a Submodel Template Specification conformant to [SMT].

3.1.6 EXAMPLES​

Example JSON Payload: Submodel "TractionBatteryCode" for a Battery Cell.

{
 "productType": "cell",
 "tractionBatteryCode": "X12CCPM27KLPCLE662382320"
}

Example JSON Payload: Submodel "TractionBatteryCode" for a Battery Module

{
 "productType": "module",
 "tractionBatteryCode": "B54MCPM27KLPCLE6A7519857",
 "subcomponents": [
   {
     "productType": "cell",
     "tractionBatteryCode": "X12CCPM27KLPCLE662382320"
   },
   {
     "productType": "cell",
     "tractionBatteryCode": "X12CCPM27KLPCLE662382321"
   }
 ]
}

Example JSON Payload: Submodel "TractionBatteryCode" For a Battery Pack

{
 "productType": "pack",
 "tractionBatteryCode": "4A6PCPM27KLPCLE742946319",
 "subcomponents": [
   {
     "productType": "module",
     "tractionBatteryCode": "B54MCPM27KLPCLE6A7519857",
     "subcomponents": [
       {
         "productType": "cell",
         "tractionBatteryCode": "X12CCPM27KLPCLE662382320"
       },
       {
         "productType": "cell",
         "tractionBatteryCode": "X12CCPM27KLPCLE662382321"
       }
     ]
   },
   {
     "productType": "module",
     "tractionBatteryCode": "B54MCPM27KLPCLE6A7519858",
     "subcomponents": [
       {
         "productType": "cell",
         "tractionBatteryCode": "X12CCPM27KLPCLE662382322"
       },
       {
         "productType": "cell",
         "tractionBatteryCode": "X12CCPM27KLPCLE662382323"
       }
     ]
   }
 ]
}

4 APPLICATION PROGRAMMING INTERFACES​

This section is normative

4.1 QUALITY NOTIFICATION API  ​

Notifications are - in contrast to classical data offers in Catena-X - a way to push data from a sender to a receiver. For now, this notification API is limited to the sending and receiving of quality notifications as well as the update of the notification status (following a predefined State Model). The API is used as part of the notification process of traceability.

In this regard it is important to mention, that the API standardized here is not a central API, but an API to be implemented into each participant's traceability solution or solution stack in order to be able to receive information related to quality issues and notifications in the first place.

So, this chapter describes this quality notification API with its relevant API endpoints to be created by each traceability solution or solution stack and their integration into the IDSA Protocol and/or the Tractus-X EDC as a reference implementation. On top this chapter describes the Data Asset Structure within the participant who wants to be able to receive notifications and/or updates to notifications. As the notification process includes bi-directional status communication, both entities in a process MUST provide these Data Assets and a linkage to corresponding APIs. Furthermore there is also a description of the payload of the notifications for quality investigations and quality alerts.

4.1.1 PRECONDITIONS AND DEPENDENCIES​

Application providers MUST prove their conformity by providing:

  • An openAPI specification of the endpoints described.

  • Examples of the data asset and contract definition structure in their Tractus-X EDC or any other CX-0018 compliant connector.

The Quality Notification API MUST be published towards the network using a Data Asset/Contract Definition in terms of the IDSA Protocol as described by the reference implementation [CX - 0018 DATASPACE CONNECTIVITY].

The Tractus-X EDC as a reference implementation SHOULD BE used and is referenced in this document. Other connectors fulfilling the same standards towards Catena-X MAY be leveraged as well.

It is of importance to mention, that there MUST be an API available behind each of the data offers described in the Tractus-X EDC, which works according to the openAPI specifications description.

Nevertheless, the APIs are OPTIONAL to follow the same structure, as there could even be APIs taking over the job of several of the endpoints mentioned.

The Tractus-X EDC SHOULD act as a reverse proxy towards those APIs, as it holds the Data Offers linked to the respective implemented endpoints.

4.1.2 API SPECIFICATION​

4.1.2.1 API-ENDPOINTS​

The quality notification API MUST be implemented as specified in the openAPI documentation.

In fact, it is OPTIONAL to implement the endpoint paths exactly as described in the openAPI. The reason is that those endpoints are not called from any supply chain partner directly. Rather, they are called from the Tractus-X EDC as part of data assets. In that sense, it is just important to implement endpoints that can process the defined request body and respond with the HTTP status codes and - if required - reply with the defined response body.

The data assets will act similar to a reverse proxy for the notification endpoints, therefore rather the data assets are of significance, which SHOULD be exposed towards Catena-X through the Data Offer Catalogues in the Tractus-X EDC or any other CX-0018 compliant connector.

4.1.2.2 AVAILABLE DATA TYPES​

The quality notification API MUST use JSON as the payload transported via HTTP.

4.1.2.3 API RESOURCES & ENDPOINTS​

The HTTP POST endpoints introduced in this standard MUST be called via Data Space Protocol.

The sending and receiving of notifications MUST be built on the basis of HTTP POST endpoints.

4.1.3 DATA ASSET STRUCTURE​

4.1.3.1 DATA ASSET FOR NOTIFICATION RECEIVE ENDPOINT FOR QUALITY INVESTIGATION RECEIPT​

When using the Tractus-X EDC, the following asset MUST be registered. Other connectors implementing the IDSA Protocol require a similar data asset with the same structure and provisioning towards Catena-X.

{
  "@context": {
    "cx-common": "https://w3id.org/catenax/ontology/common#",
    "cx-taxo": "https://w3id.org/catenax/taxonomy#",
    "dct": "https://purl.org/dc/terms/"
  },
  "@type": "Asset",
  "@id": "qualityinvestigationnotification-receive",
  "properties": {
    "dct:type": {
      "@id": "cx-taxo:ReceiveQualityInvestigationNotification"
    },
    "cx-common:version": "1.2"
  },
  "dataAddress": {
    ...
  }
}

The variable {{httpServerWhichOffersTheHttpEndpoint}} MUST be set to the HTTP server that offers the endpoint. The path /qualityinvestigations/receive MAY align with the HTTP POST path as stated in Section 4.1.2.1. In that sense it can change dependent on the traceability application.

4.1.3.2 DATA ASSET FOR NOTIFICATION RECEIVE ENDPOINT FOR QUALITY ALERT RECEIPT​

When using the Tractus-X EDC, the following asset MUST be registered. Other connectors implementing the IDSA Protocol require a similar data asset with the same structure and provisioning towards Catena-X.

{
  "@context": {
    "cx-common": "https://w3id.org/catenax/ontology/common#",
    "cx-taxo": "https://w3id.org/catenax/taxonomy#",
    "dct": "https://purl.org/dc/terms/"
  },
  "@type": "Asset",
  "@id": "qualityalertnotification-receipt",
  "properties": {
    "dct:type": {
      "@id": "cx-taxo:ReceiveQualityAlertNotification"
    },
    "cx-common:version": "1.2"
  },
  "dataAddress": {
    ...
  }
}

The variable {{httpServerWhichOffersTheHttpEndpoint}} MUST be set to the HTTP server that offers the endpoint. The path /qualityalerts/receive MAY align with the HTTP POST path as stated in Section 4.1.2.1. In that sense it can change dependent on the traceability application.

4.1.3.3 DATA ASSET FOR NOTIFICATION UPDATE ENDPOINT FOR QUALITY INVESTIGATION UPDATE​

When using the Tractus-X EDC the following asset MUST be registered. Other connectors implementing the IDSA Protocol require a similar data asset with the same structure and provisioning towards Catena-X.

{
  "@context": {
    "cx-common": "https://w3id.org/catenax/ontology/common#",
    "cx-taxo": "https://w3id.org/catenax/taxonomy#",
    "dct": "https://purl.org/dc/terms/"
  },
  "@type": "Asset",
  "@id": "qualityinvestigationnotification-update",
  "properties": {
    "dct:type": {
      "@id": "cx-taxo:UpdateQualityInvestigationNotification"
    },
    "cx-common:version": "1.2"
  },
  "dataAddress": {
    ...
  }
}

The variable {{httpServerWhichOffersTheHttpEndpoint}} MUST be set to the HTTP server that offers the endpoint. The path /qualityinvestigations/update MAY align with the HTTP POST path as stated in Section 4.1.2.1. In that sense it can change dependent on the traceability application.

4.1.3.4 DATA ASSET FOR NOTIFICATION UPDATE ENDPOINT FOR QUALITY ALERT UPDATE​

When using the Tractus-X EDC the following asset MUST be registered. Other connectors implementing the IDSA Protocol require a similar data asset with the same structure and provisioning towards Catena-X.

{
  "@context": {
    "cx-common": "https://w3id.org/catenax/ontology/common#",
    "cx-taxo": "https://w3id.org/catenax/taxonomy#",
    "dct": "https://purl.org/dc/terms/"
  },
  "@type": "Asset",
  "@id": "qualityalertnotification-update",
  "properties": {
    "dct:type": {
      "@id": "cx-taxo:UpdateQualityAlertNotification"
    },
    "cx-common:version": "1.2"
  },
  "dataAddress": {
    ...
  }
}

The variable {{httpServerWhichOffersTheHttpEndpoint}\s} MUST be set to the HTTP server that offers the endpoint. The path /qualityalerts/update MAY align with the HTTP POST path as stated in Section 4.1.2.1. In that sense it can change dependent on the traceability application.

4.1.4 VERSIONING​

The API version described in this standard document MUST be published in the property https://w3id.org/catenax/ontology/common#version as version 2.0 in dcat:Dataset (http://www.w3.org/ns/dcat#).

4.1.5 EXAMPLES​

Example 1: Quality Investigation

I as a customer discover a quality issue during assembly with several parts of a specific supplier. I want to inform my supplier to perform a quality investigation on his side and want to communicate this data securely and sovereign to him.

Example 2: Quality Alert

I as a supplier discover a problem with specific batches or serialized parts on my end affecting also parts already shipped. I want to communicate this data securely and sovereign to my customers.

5 PROCESSES​

This section is normative

5.1 QUALITY NOTIFICATION PROCESS​

This chapter describes the minimum requirements for the notification process and does not go beyond the sending and receiving of quality notifications. It also illustrates common practices for identifying the correct receiving endpoint when sending a notification. For this purpose, a protocol is described that will be exchanged between traceability applications or application stacks leveraging Tractus-X EDC or any other CX-0018 compliant connector on both ends.

The notification process therefore takes place between traceability applications or application stacks, and the focus is on minimal interaction, which MUST be supported by all applications participating in a quality notification or quality investigation scenario.

Application internals like user journeys, process steps or workflows in an application are not standardized within Catena-X, and therefore omitted.

5.1.1 ACTORS AND ROLES​

Catena-X does not standardize user-roles at the moment. The actors are traceability applications of the companies in a supply chain.

5.1.2 PROCESS REPRESENTATION​

The exchange of notifications follows the IDSA protocol.

On top, a notification state model has been described.

5.1.2.1 NOTIFICATION STATE MODEL​

The notification itself has various states. The states and their cycle are described in the following figure:

CX0125_Notification-State-Model.svg

Figure 2: Description of Process

The state of a notification MUST be exchanged via the Notification API.

5.1.2.2 PROCESSES FOR SENDING AND UPDATING NOTIFICATIONS​

Below the sequence for sending and updating of notifications between (traceability) applications is shown in UML sequence diagrams In all cases, HTTP POST requests MUST be used. The corresponding HTTP endpoints are described in chapter Notification API.

To read the UML sequence diagrams correctly, some remarks below:

  • The shown Notification Tractus-X EDC Adapter is not mandatory. It is just one option to send a notification via the Tractus-X EDC control and data plane. It is important, that a similar functionality must be provided/implemented by the (traceability) application vendor. The Notification Tractus-X EDC Adapter or a similar component / functionality will not be provided as a central service from Catena-X.

  • To discover where a notification MUST be sent to, the (traceability) application MUST resolve the BPN of the receiver. This can either happen through the (traceability) application holding this information in its data model, or it could - alternatively - also be resolved e.g. via a lookup of the digital twin in the central asset administration shell (AAS) registry or by using services from the BPDM use case.

  • The resolution of the Tractus-X EDC URL for a given BPN SHOULD be done via the EDC Discovery Service API [CX-0001]. The entry for each Tractus-X EDC into this Discovery Service is done via the Catena-X Portal.

  • In each UML sequence diagram the step [01] describes the publishing of the notification endpoints as described in the above sections.

5.1.2.2.1 SENDING AND RECEIVING OF A QUALITY INVESTIGATION​

Below, the UML sequence diagram to send and receive a quality investigation is depicted.

In addition to the above-mentioned general remarks, the following remark has to be mentioned:

  • The status transition from SENT to RECEIVED MUST be done by the

sender once it has received the HTTP status code 201 from the receiver. This status is not communicated from the sender to the receiver.

CX0125_SendAndReceive_2.svg

Figure 3: Send and Receive Quality Investigation

5.1.2.2.2 SENDING AND RECEIVING OF A QUALITY ALERT​

Below, the UML sequence diagram to send and receive a quality alert is depicted.

In addition to the above-mentioned general remarks, the following remark has to be mentioned:

  • The status transition from SENT to RECEIVED MUST be done by the

sender once it has received the HTTP status code 201 from the receiver. This status is not communicated from the sender to the receiver.

CX0125_SendAndReceive_3.svg

Figure 4: Send and Receive Quality Alert

5.1.2.2.3 UPDATE OF A QUALITY INVESTIGATION​

Below, the UML sequence diagram to update a quality investigation is depicted.

CX0125_UpdateQuality_4.svg

Figure 5: Update Quality Investigation

5.1.2.2.4 UPDATE OF A QUALITY ALERT​

Below, the UML sequence diagram to update a quality alert is depicted.

CX0125_UpdateQualityAlert_5.svg

Figure 6: Update Quality Alert

6 REFERENCES​

6.1 NORMATIVE REFERENCES​

This section is normative

  • CX-0001 EDC Discovery API 1.0.2
  • CX-0002 Digital Twins in Catena–X 2.2.0
  • CX-0003 SAMM Aspect Meta Model 1.1.0
  • CX-0018 Dataspace Connectivity 3.0.0
  • CX-0127 Industry Core - Part Instance 2.0.0
  • Tractus-X EDC Reference Implementation - https://github.com/eclipse-tractusx/tractusx-edc

6.2 NON-NORMATIVE REFERENCES​

This section is non-normative

6.3 REFERENCE IMPLEMENTATIONS​

This section is non-normative

ANNEXES​

FIGURES​

This section is non-normative

TABLES​

This section is non-normative

Copyright © 2024 Catena-X Automotive Network e.V. All rights reserved. For more information, please visit here.
